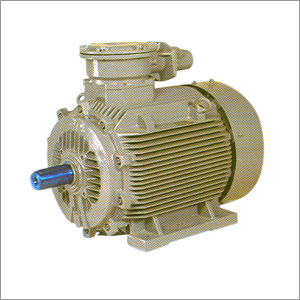

Flameproof Motor Flameproof motors are used in Zone 1 areas (IS 5572) where hazardous atmosphere is likely to be present continuously under normal operating conditions. These motors are certified by CMRI, approved by CCE/DGMS and covered under BIS license conforming to IS: 2148.
Voltage: 415 ± 10%
Frequency: 50Hz ± 5%
Combined Variation: ± 10%
Duty: SI (continuous)
Ambient: 45ºC
Insulation Class: F
Temperature Rise: B
Protection: IP 55
Const-B3/B5
Range
Frame size
2 Pole
4 Pole
6 Pole
8 Pole
80 to 280M
0.37-90kW
0.37-90kW
0.37-55kW
0.37-45kW
315S/M/L New!
110-200kW
110-200kW
75-160kW
55-132kW
Application These motors find applications where hazardous atmosphere is likely to be present under normal conditions, for example
