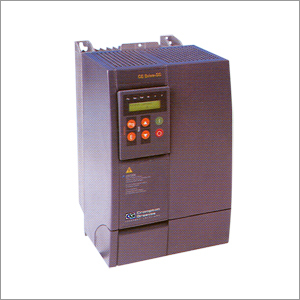

Drive-SG The CG Drive-SG inverter series has been designed to satisfy the typical needs of modern control systems, where innovative technical solutions and high performance are essential.
Expressly developed to provide the best performance in application where high torque is required at the start or at low frequencies. Thanks to its smart functionality integrated, the SG inverter has a high number or I/0 and a wide range of options, allowing full flexibility and adaptability for all automation requirements.
A simple programming structure, guarantees a quick motor "start-up" or more complex systems regulation, either through the simple to use standard keypad or using the E@syDrives PC tool.
Available for universal supplies and with a wide power range, with a modular structure and a dedicated accessories line, SG offers the basis for efficient configurations and economically competitive solutions.
A single "Drive" for every solution
Supply: 3 Phase, 230V... 480V50/60Hz
Motor powers from 5.5kW (7.5HP) upto 200kW (250HP)
Output frequency 500Hz
Integrated braking module up to 15kw, integrated option up to 55kW
Speed feed-back with closed loop through encoder (option)
Digital I/0 logic control in PNP and / or NPN configuration
3 Differential analog inputs ± 10V (or current)
2 Analog outputs (±10V)
8 Digital inputs
4 Digital outputs (2 static and 2 relays)
Programmable overload up to 150% in accordance with IEC 146-1-1 Class1 / Class2
LED display keypad (optional LCD Multi languages keypad)
RS485 Serial communication (Modbus RTU protocol)
Interfacing with field bus protocol as: ProfiBus (ProfiDrive)-CAN open-Device Net
Integrated Can open / Device net version
Protection degree SIP20 (option IP54 for external heat sink mounting)
Full flexibility
Motor parameters self tuning
Programmable and predefined V/F curves
4 Independent programmable ramps
16 Programmable multi speed
"Auto capture" function (flying restart)
Mains loss detection with controlled stop
Programmable auto restart
PID Application block
Energy saving function
Skip frequencies
Motor thermal protection
Virtual and remote I/0 standard management
Options
Programming multi languages keypad KBG-LCD-2(IT ENG-GERM)
Programming multi languages keypad KBG-LCD-A2 (ENG-FR-SP) for AGy...4 version
I/0 expansion card EXP-D6A1R1-AGy
120Vac Digital input interface EXP-D8-120
Encoder feed-back interface QUIX-ENC
ProfiBus interface card SBI-PDP-AGy
Memory key PRG-KEY
Accessories
Dedicated EMC filters (in compliance with CEE-EN61800-3 European directive)
Braking resistors (standardized for the whole line)
Input and output choke (standardized for the whole line)
