Product Description

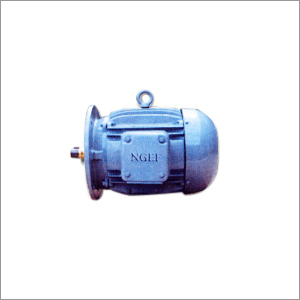

Energy Efficient Motor
Electrical Data of 450 VAC, 50 Hz, 3 phase energy efficient induction Motor.

General specification

AC 3 phase
EESC Motors
415± 6% AC
50 Hz ± 3%
Insulation "F"
Temp 10 degree Celsius to 40 degree Celsius
Continuous duty
IS : 325 compliant

2 POLE (3000 rpm)						4 POLE (1500 rpm)						6 POLE (1000 rpm)						8 POLE (750 rpm)
Frame Size AMEW	Output KW/HP	FLC AMPS	Speed RPM	COS Ø	EFF %	Frame Size AMEW	Output KW/HP	FLC AMPS	Speed RPM	COS Ø	EFF %	Frame Size AMEW	Output KW/HP	FLC AMPS	Speed RPM	COS Ø	EFF %	Frame Size AMEW	Output KW/HP	FLC AMPS	Speed RPM	COS Ø	EFF %
63N	0.18/ 0.25	0.54	2760	0.78	67	63 N	0.18/ 0.25	0.56	1330	0.72	62	71K	0.18/ 0.25	0.65	915	0.68	56	71K	0.075/ 0.10	0.42	680	0.55	45
63N	0.25/ 0.33	0.67	2760	0.78	67	71 N	0.25/ 0.33	0.65	1370	0.76	70	71N	0.22/ 0.30	0.80	915	0.68	56	71N	0.09/ 0.12	0.50	680	0.55	45
71NF	0.37/ 0.50	0.92	2725	0.80	70	71 N	0.37/ 0.5	0.97	1370	0.76	70	80N	0.37/ 0.50	1.0	920	0.70	72	80N	0.18/ 0.25	0.70	680	0.65	61
71NF	0.55/ 0.75	1.4	2725	0.80	70	80 N	0.55/ 0.75	1.3	1400	0.80	75	80N	0.55/ 0.75	1.5	920	0.70	72	80N	0.25/ 0.33	0.90	680	0.65	61
80N	0.75/ 1.0	1.7	2800	0.84	74	80 N	0.75/ 1.0	1.8	1400	0.80	75	90S	0.75/ 1.0	1.9	925	0.75	74	90S	0.37/ 0.5	1.2	690	0.65	68
80F	1.1/ 1.5	2.5	2800	0.84	76.2	90 S	1.1/ 1.5	2.4	1400	0.83	78	90 L	1.1/ 1.5	2.7	925	0.76	76	90 L	0.55/ 0.75	1.7	690	0.67	69
90 SF	1.5/ 2.0	2.8	2810	0.84	82	90 L	1.5/ 2.0	3.2	1400	0.83	78	100 L	1.5/ 2.0	3.4	925	0.76	80	100 LK	0.76/ 1.0	2.1	690	0.70	73
90 LF	2.2/ 3.0	4.4	2840	0.86	82.4	100 L	2.2/ 3.0	4.4	1400	0.84	84	112 M	2.2/ 3.0	4.6	925	0.81	82	100 L	1.1/ 1.5	3.1	690	0.70	73
100 L	2.2/ 3.0	7.3	2885	0.84	84	112 MF	3.7/ 5.0	7.1	1440	0.84	86	132 S	3.7/ 5.0	7.7	955	0.79	85	112 M	1.5/ 2.0	4.0	690	0.71	76
132 SF	5.5/ 7.5	10	2855	0.88	85.7	132 SF	5.5/ 7.5	10	1440	0.87	88	132 M	5.5/ 7.5	11.5	955	0.79	86.5	132 S	2.2/ 3.0	4.9	700	0.77	81
132 MF	7.5/10	13.1	2875	0.89	89.5	132 MF	7.5/10	13.5	1445	0.87	88	160 MZ	7.5/10	14.5	970	0.81	88	160 MK	3.7/ 5.0	7.3	710	0.83	85
160 MFZ	9.3/ 12.5	16	2905	0.89	90.4	160 MFZ	9.3/ 12.5	16.7	1465	0.84	92	160 LZ	9.3/ 12.5	18	965	0.8	89.5	160 L	5.5/ 7.5	11	710	0.83	85
160 MFZ	11/15	19	2900	0.89	90.4	160 MFZ	11/15	20	1465	0.84	92	160 LZ	11/15	21.2	970	0.8	90	160 L	7.5/10	14.5	710	0.83	87
160 MFZ	15/20	25.8	2910	0.89	91.3	160 LFZ	15/20	26.8	1465	0.85	91
160 LFZ	18.5/ 25	32	2910	0.89	91.3
